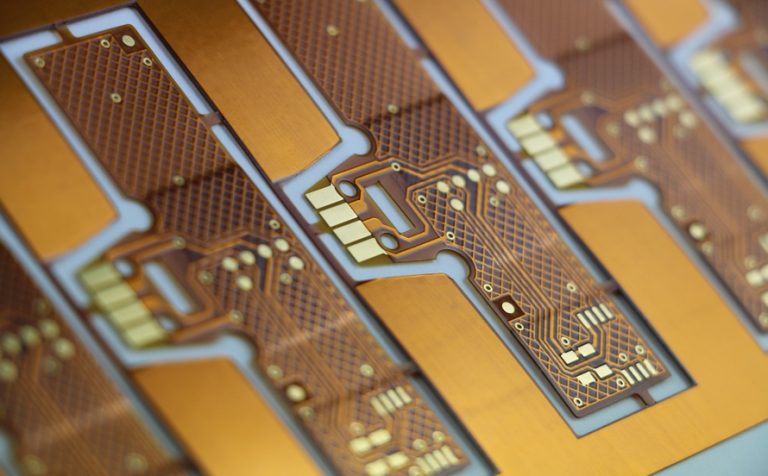

Polyimide may adopt a thin film structure, which gives it certain advantages such as bendability and flexibility. Even though polyimide circuit boards have high flexibility, they also have excellent tensile strength, which means they can withstand heavy loads.

Polyimide PCB materials also have the characteristic of being resistant to corrosive chemicals. Its chemical structure is not easily degraded when interacting with solvents and substances. This feature makes it more suitable for medical applications.

Polyimide circuit boards can resist degradation even at high temperatures. The thermal stability of polymers is measured using a thermogravimetric analysis system, where mass loss is a function of time at a constant temperature. It can withstand temperatures ranging from 300 to 500 degrees Celsius, and its maximum operating temperature is the highest among other polymers.

Polyimide circuit boards also have good electrical properties, such as low dielectric constant and good electrical insulation performance. It is particularly suitable for high-pressure industrial applications. The low dielectric constant of polyimide circuit boards helps maintain signal integrity and reduce unnecessary capacitance between adjacent conductive traces.

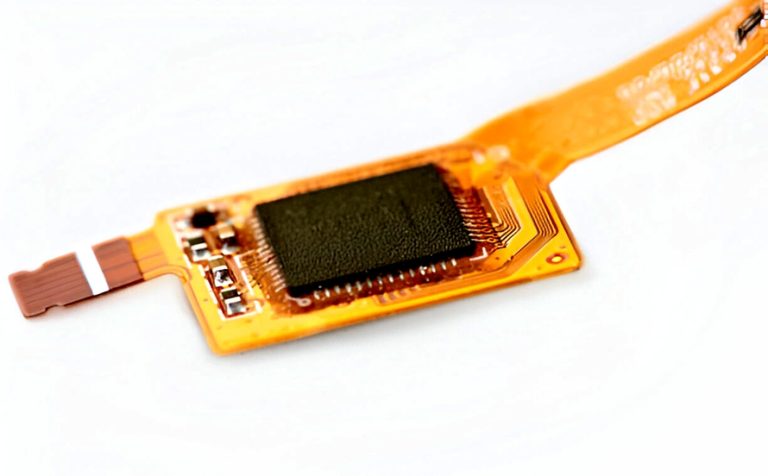

Given the many advantages of polyimide circuit boards, different market sectors are using this material to produce powerful devices. The following are typical applications of polyimide flexible circuits:

Medical equipment requires portable sensing devices with mechanical flexibility. Polyimide flexible circuits have these advantages, making them a popular material choice for medical applications. For example, displacement sensors in biomedical devices include polyimide PCBs because they are easy to integrate with various electronic devices. The use of non-invasive portable systems for real-time monitoring of health signals has better advantages than bulky wired systems.

Polyimide PCBs are also widely used in commercial applications such as computers, televisions, smartphones, and wearable devices, which require compact and lightweight materials. Due to its inherent low mechanical stiffness and thermal stability, smaller devices can be achieved.

Polyimide flexible circuits are widely used in electronic devices inside vehicles because they can be accommodated in small spaces of various geometric shapes. The vehicle's audio system, cameras, control and sensing equipment are all equipped with polyimide circuit boards.

The lightweight and excellent thermal performance of polyimide PCB materials make them the preferred choice for space electronic devices. Spacecraft electronic equipment has high reliability components, and polyimide flexible PCBs can meet these requirements. Flexible printed circuit boards can replace bulky non planar wires and cables in aerospace applications.

Now, let's discuss the manufacturing steps of polyimide printed circuit boards:

Press the polyimide material onto the copper foil and use a vacuum press to cure it at high temperatures within the specified time. The pressed laminated board is baked again at high temperature before entering the next process. Lay layers after dehumidification of laminated and pre impregnated materials.

The etching process is performed by coating a photoresist layer and exposing it to ultraviolet light through a masking process. Immerse the photoresist into a developing solution and then etch away unwanted copper material to create a copper pattern.

Drill holes and vias on polyimide PCB, and then perform electroplating to achieve cross layer electrical connections.

Then apply solder resistant material onto the polyimide PCB to prevent copper oxidation. Apply a solder mask layer onto the insulation layer to prevent bridging and short circuits.

The screen printing process involves printing information such as component codes, positions, and references on PCB polyimide using solder mask materials.
